2 System features Compared to previous generations, the Dell PowerEdge R630 offers faster processing power, more drive bay options, more PCIe slots, next-generation RAID controllers and advanced system management. Comparison of PowerEdge systems Table 2 compares some of the features of the R630 to the R620. Page 10: Specifications. Product Description Dell PowerEdge R630 Rack Network Server Computers DDR4 Server With Server System Maximize data center efficiency with an ultra-dense virtualization or database engine that supports up to 10 flash SSDs in a 1U chassis.

Dell’s 13th Generation PowerEdge R630 rackmount server packs 2U performance into a 1U chassis for uncompromising density and productivity. The R630 is perfect for virtualization, transactional databases, and running large business applications, especially in data center environments where rackspace is limited. Powered by dual Intel Xeon E5 2600 v3 product family processors for up to eighteen cores and 45MB cache per cpu, the R630 can tackle your most compute-intensive applications. The R630 is perfect for your growing virtual server infrastructure with a total of 24 memory module sockets. The R630 scales up to 768GB total DDR4 RAM running at a maximum of 2133MT/s. Aventis Systems offers the R630 in two different chassis options: the 8-bay 2.5” hard drive models below, as well as the 10-bay 2.5” model. We offer these systems with SAS or SATA hard drive options, as well as solid state drives. Our hard drive configurations begin with half of the drive bays populated to allow for future expansion, or you can click through for a custom configuration with a maximum capacity of 16TB internal storage. With 12Gb maximum storage throughput and dense storage options, the R630 is particularly well suited for large-scale transactional and analytical processing solutions. If you’re looking for superior I/O performance, high-density processing and flexible storage capacity, please browse below and customize your R630 today!

Aventis Systems carries New Dell PowerEdge R630 servers. All servers from Aventis System include a 3 year Comprehensive Warranty, with eligibility for optional Express warranties and onsite services.

Products » Servers » Dell EMC PowerEdge Servers » Rack Servers » Dell EMC PowerEdge R630

With computing capability previously only seen in 2U servers, the ultra-dense PowerEdge R630 two-socket 1U rack server delivers an impressive solution for virtualization environments, large business applications or transactional databases. The PowerEdge R630 server is versatile and highly configurable for a variety of solutions, delivering the latest Intel® Xeon® processor E5-2600 v4 product family, 24 DIMMs of high-performance DDR4 memory and a broad range of local storage options.

*Dell EMC PowerEdge R630 went end-of-life (EOL) in 2019. Don't worry though—we have them available.

Processor

• Intel® Xeon® processor E5-2600 v4 product family

Storage & Drives

Dell offers a variety of Hard Disk Drives (HDD) and Solid State Drives (SSD) for your enterprise needs.

• Internal hard drive bay and hot-plug backplane:

• Up to 24 x 1.8' SATA SSD
• Up to 10 x 2.5' HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
• Up to 8 x 2.5' HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

PowerEdge R630 Memory

• Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

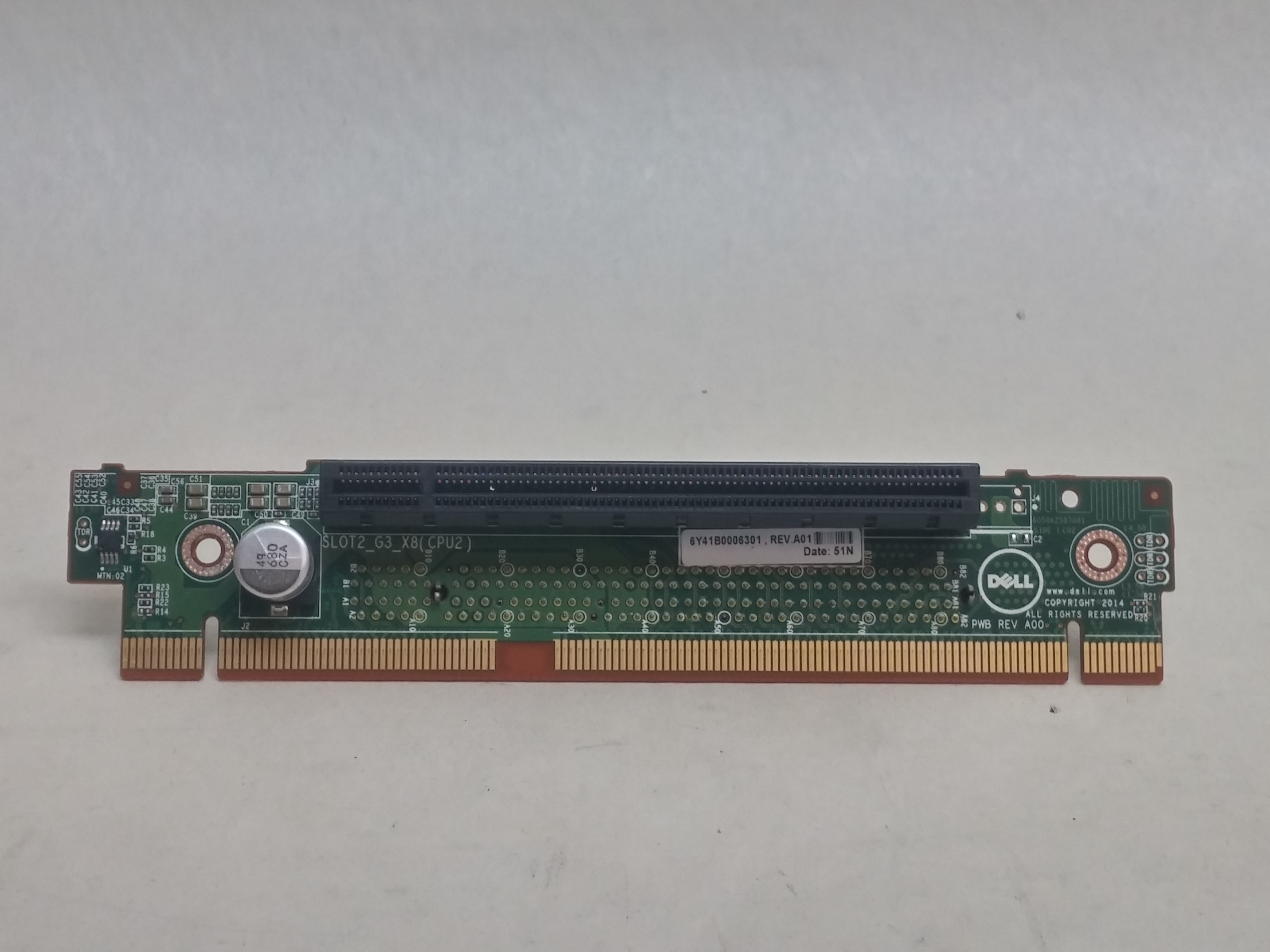

Slots

• 2 CPUs, 3 slots

• Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
• Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector)
• Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector)

• 2CPUs, 2 slots

• Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
• Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector)

• 1CPU, 2 slots

• Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector)
• Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector

• Dedicated RAID card slot

Poweredge R630 Specs Pdf

Power

Dell Poweredge R630 Dimm Slots

• 1100W AC, 86 mm (Platinum)
• 1100W DC, 86 mm
• 750W AC, 86 mm (Platinum)
• 750W AC, 86 mm (Titanium)
• 495W AC, 86 mm (Platinum)

Dell PowerEdge R630 Dimensions & Weight

Poweredge R630 Drivers

• 24 x 1.8' and 10 x 2.5', drive configuration: Height: 4.28 cm (1.68 in), Width: 48.23 cm (18.98 in), Depth: 75.51 cm (29.72 in)
• 8 x 2.5' drive configuration: Height: 4.28 cm (1.68 in), Width: 48.23 cm (18.98 in), Depth: 70.05 cm (27.57 in)
• 16.9 kg (37.26 lb) - 18.5 kg (40.79 lb)
